Case Study
Industrial Steel Support Structures
Multi-Level Structural Framing & Equipment Support Detailing
Industrial Manufacturing & Processing
6
Structural Assemblies
Multi-Level
Framing Complexity
Tekla Structures
Modelling Software
Industrial Mfg.
Project Sector
Multi-level industrial structural framing overview — click to enlarge
Project Overview
AFAR Steel Detailing Ltd. provided comprehensive structural steel modelling and fabrication documentation for an industrial processing project involving interconnected structural framing and equipment-support structures.
The scope included multi-level framing systems, industrial stair towers with multi-flight access, equipment-support platforms, and detailed fabrication drawings covering beams, columns, bracing, and structural connections.
This project demonstrates AFAR Steel's capability to coordinate complex structural arrangements across multiple levels and facility areas, delivering complete fabrication-ready documentation for industrial construction.
Scope of Work
Structural Framing Systems
- —Multi-level industrial structural framing
- —Wide-flange beam and column assemblies
- —Diagonal and cross-bracing systems
- —Multi-bay framing coordination
Equipment Support & Access
- —Industrial equipment-support platforms
- —Multi-flight stair tower with landings
- —Elevated access platforms and guardrails
- —Structural support for processing equipment
Fabrication Documentation
- —General arrangement drawings
- —Member fabrication details and BOMs
- —Connection details and bolt patterns
- —Plan, elevation, and section views
Technical Capabilities Demonstrated
Multi-Level Industrial Framing
Modelled and detailed complex multi-level structural framing systems with wide-flange beams, columns, and interconnected bays. Coordinated member sizes, elevations, and connection interfaces across multiple framing levels.
Industrial Stair Tower Detailing
Detailed a multi-flight industrial stair tower with intermediate landings, guardrails, and structural bracing. The tower required precise geometry coordination across multiple levels with consistent connection detailing throughout.
Equipment-Support Platform Design
Produced detailed structural models and fabrication drawings for industrial equipment-support platforms. Framing was coordinated to suit equipment loads, installation clearances, and access requirements.
Cross-Bracing & Lateral Systems
Detailed diagonal and cross-bracing systems integrated into multi-level framing. Brace members, gusset plates, and end connections were fully documented with precise dimensions and material specifications.
General Arrangement Drawings

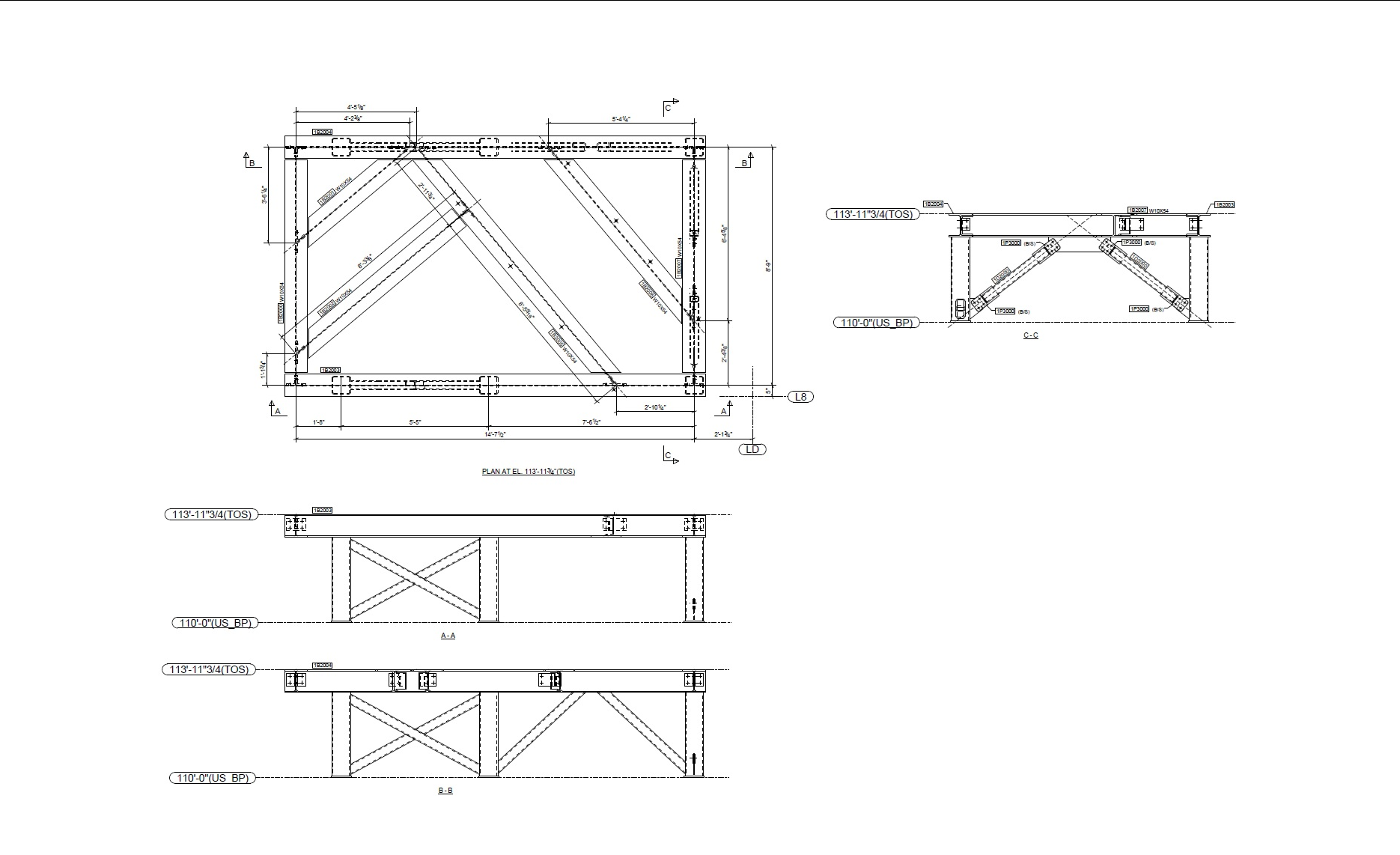

Produced comprehensive general arrangement drawings showing plan, elevation, and section views of the complete structural system. Drawings communicated overall geometry, member layout, and key dimensions for construction coordination.
Complete Fabrication Documentation
Delivered fabrication-ready shop drawings with full bill-of-material schedules, weld and bolt specifications, and member mark numbers. Documentation was coordinated with the 3D model to ensure accuracy across all deliverables.
Project Gallery
Click any image to enlarge. Use arrow keys or buttons to navigate.
3D Structural Models
Fabrication & Technical Drawings
Experienced Steel Detailing for Industrial Projects
From multi-level industrial framing and equipment-support structures to stair towers and fabrication documentation, AFAR Steel Detailing delivers complete, accurate detailing packages tailored to your project.
